HR 8735

33.6 kV maximum anode voltage · 110° deflection · 3 windings · 408 g

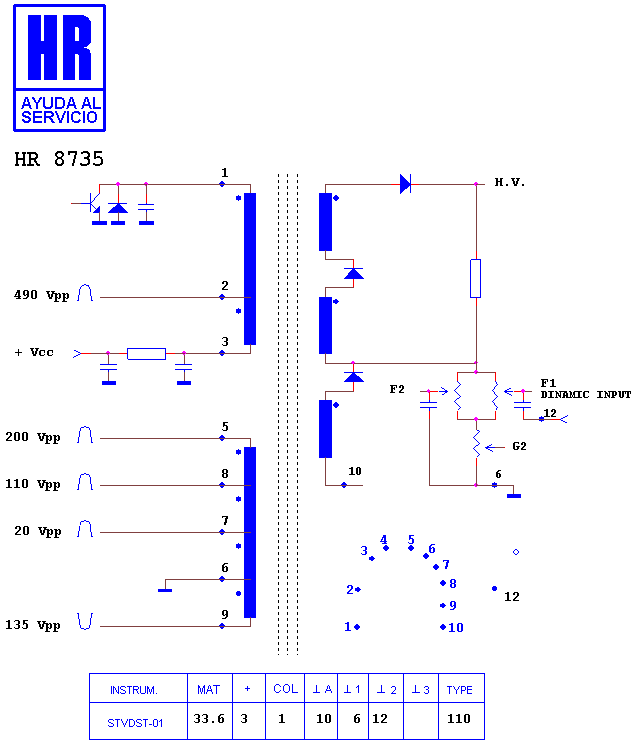

Schematic diagram for HR 8735
schematic (archived)

Manufacturer equivalents (11)

1372.7018 · 1372.7022 · 1372.7022 A · AA 26-00070 A · AA 26-00086 A · AA 26-00131 A · AA2600121A · FUJ 34 B 001 F · FUJ 34 B 001 F(S) · FUJ 34 B 001 S · HR 8735

Fitted to (1)

SAMSUNG CHASIS KS 3 A

Search this part in the full database
