HR 8717

30.9 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

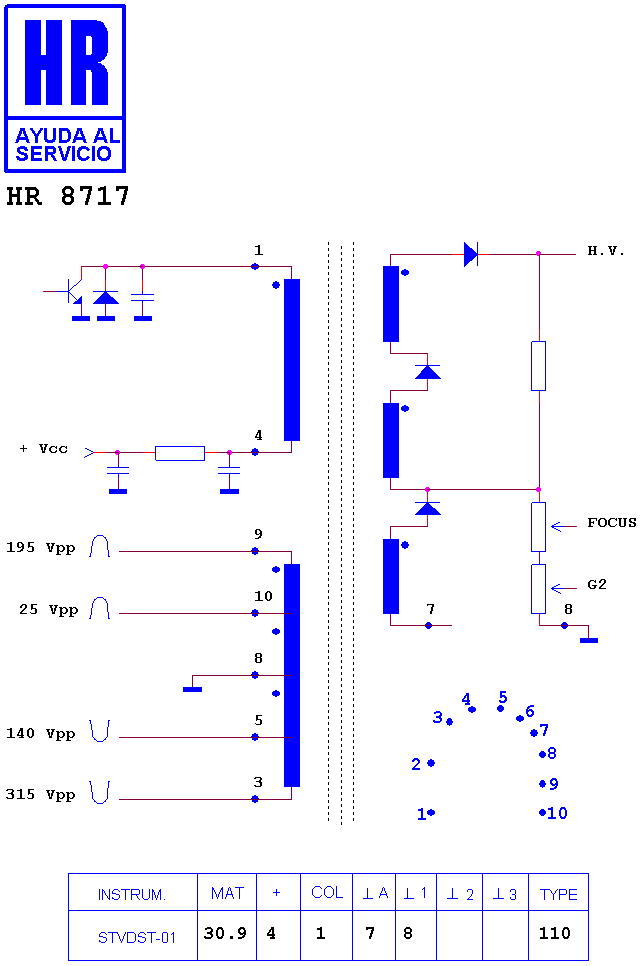

Schematic diagram for HR 8717
schematic (archived)

Manufacturer equivalents (5)

1362.5019 · 1362.5019A · 1362.5019C · 50H0000234 · HR 8717

Fitted to (3)

DAEWOO CHASIS CP 885 F · DAEWOO DTF 29 U 8 · DAEWOO DTF 29 V 8

Search this part in the full database
