HR 8709

46.5 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

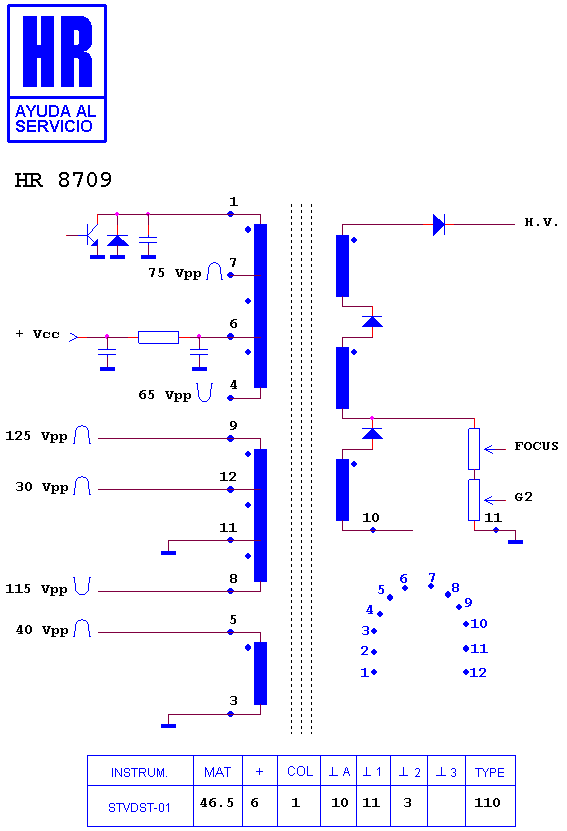

Schematic diagram for HR 8709
schematic (archived)

Manufacturer equivalents (6)

1302.0012 · 1302.0012A · 25830061 · 311125830061 · FAT30755 · HR 8709

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80123 · HR 8144 · HR 80033

Fitted to (16)

PHILIPS 25 PT 5123 · PHILIPS 25 PT 5123/16 · PHILIPS 25 PT 5302 · PHILIPS 25 PT 5302/58 · PHILIPS 28 PW 6302 · PHILIPS 28 PW 6302/00 · PHILIPS 28 PW 6322/01 · PHILIPS 28 PW 6322/05 · PHILIPS 29 PT 5123 · PHILIPS 29 PT 5123/16 · PHILIPS CHASIS L 1.2 M 1 · PHILIPS CHASIS MD 1.2 E · PHILIPS CHASIS MID 1.2 · PHILIPS CHASIS MID 1.2 SF · PHILIPS CHASIS MID 1.2 WSF · RADIOLA 63 TA 4013/16

Search this part in the full database
