HR 8652

type ST · family 1YP · 410 g

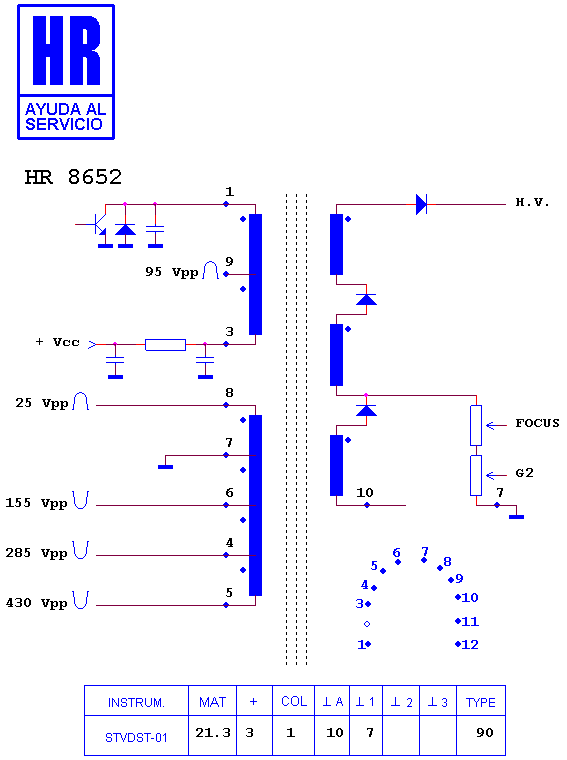

Schematic diagram for HR 8652
schematic (recovered)

Manufacturer equivalents (5)

1332.0020 · 1332.0020 A · 30016641 · HR 8652 · VE 30016641

Fitted to (2)

JVC AV 21 BF 10 ENS · VESTEL CHASIS 11 AK 19
