HR 8646

type ST · family 1YP · 410 g

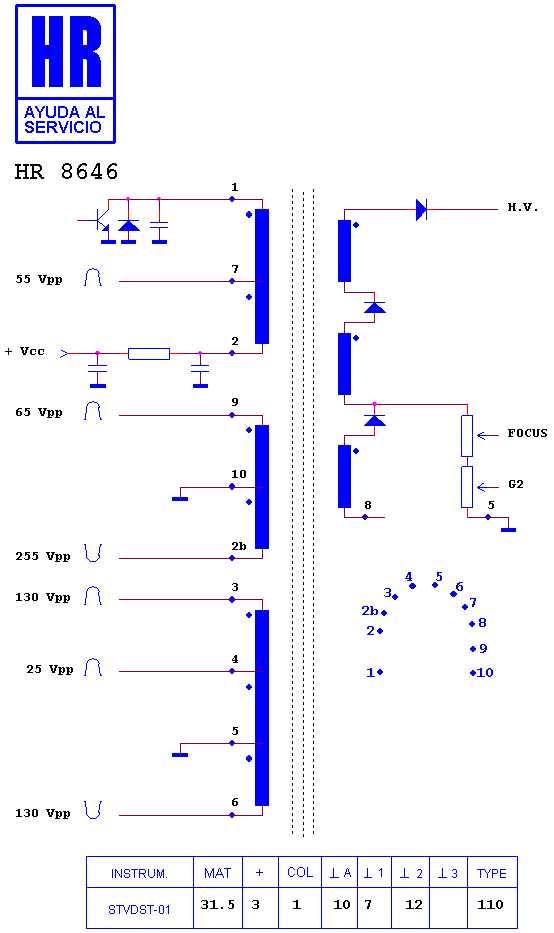

Schematic diagram for HR 8646
schematic (recovered)

Manufacturer equivalents (7)

1302.0043 · 1302.0043 A · 1302.0043 B · 1302.00430 · 30016869 · HR 8646 · VS30016869

Fitted to (1)

VESTEL CHASIS 11 AK 33
