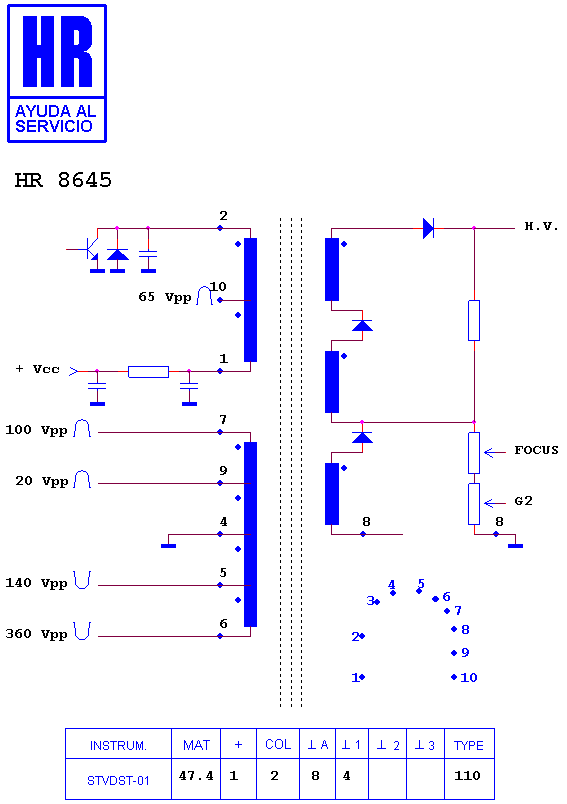

HR 8645

type ST · family 1YP · 47.4 kV maximum anode voltage · 110° deflection · 410 g

Manufacturer equivalents (2)

6174 Z 6012 J · FTMPN 51 T 6012 J

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (36)

LG - GOLDSTAR CB 25 H 30 · LG - GOLDSTAR CB 25 H 40 E · LG - GOLDSTAR CB 25 H 40 T · LG - GOLDSTAR CB 25 H 46 E · LG - GOLDSTAR CB 28 H 80 G · LG - GOLDSTAR CB 28 H 80 L · LG - GOLDSTAR CB 28 H 86 G · LG - GOLDSTAR CB 28 H 86 L · LG - GOLDSTAR CB 29 H 30 · LG - GOLDSTAR CB 29 H 40 · LG - GOLDSTAR CB 29 H 40 E · LG - GOLDSTAR CB 29 H 40 T · LG - GOLDSTAR CB 29 H 46 E · LG - GOLDSTAR CE 28 H 86 T · LG - GOLDSTAR CF 25 H 40 T · LG - GOLDSTAR CF 28 H 80 G · LG - GOLDSTAR CF 28 H 80 L · LG - GOLDSTAR CF 28 H 86 G · LG - GOLDSTAR CF 28 H 86 L · LG - GOLDSTAR CF 29 H 40 T · LG - GOLDSTAR CHASIS PC 8 KA · LG - GOLDSTAR CI 29 H 40 · LG - GOLDSTAR CK 25 H 40 E · LG - GOLDSTAR CK 28 H 80 G · LG - GOLDSTAR CK 28 H 80 L · LG - GOLDSTAR CK 28 H 86 G · LG - GOLDSTAR CK 28 H 86 L · LG - GOLDSTAR CK 29 H 40 E · LG - GOLDSTAR CL 28 H 80 G · LG - GOLDSTAR CL 28 H 80 L · LG - GOLDSTAR CL 28 H 86 G · LG - GOLDSTAR CL 28 H 86 L · LG - GOLDSTAR CL 29 N 32 X · LG - GOLDSTAR CL 29 N 42 X · NAD CHASIS PC 8 KA · NAD TV 291
