HR 8644

type ST · family 1AP1 · 390 g

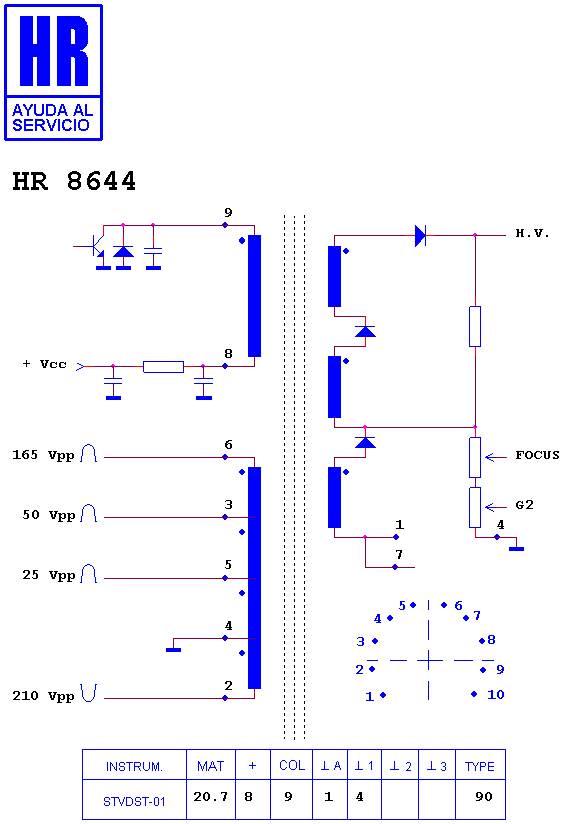

Schematic diagram for HR 8644
schematic (recovered)

Manufacturer equivalents (13)

1142.1745 · 1142.1745 B · 1142.1745A · 1142.3001 · 1142.3001 E · 1142.3001A · 29201.653.12 · 29201.653.1201 · 29201.653.1203 · 29201.654.01 · 29201.654.0101 · 90374.983 · HR 8644

Fitted to (7)

GRUNDIG 51-3101 · GRUNDIG 51-3101 TOP · GRUNDIG CHASIS CUC 2103 · GRUNDIG CHASIS CUC 7303 · GRUNDIG SUPER COLOR T · GRUNDIG T 51-3101 · GRUNDIG T 51-3101 TOP

Search this part in the full database
