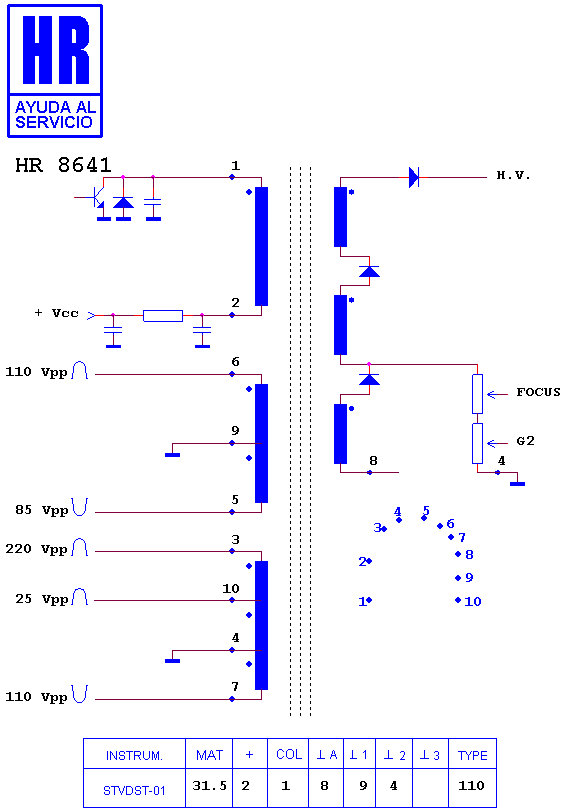

HR 8641

type ST · family 1YP · 31.5 kV maximum anode voltage · 110° deflection · 410 g

Manufacturer equivalents (6)

KFT 4 AB 327 F1 · KFT 4 AB 327 F2 · TLF 84001 A · TLF 84001 B · ZTFL 84001 A · ZTFL 84001 B

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (21)

PANASONIC - MATSUSHITA CHASIS Z 8 · PANASONIC - MATSUSHITA TX 25 CK 1 C · PANASONIC - MATSUSHITA TX 25 CK 1 C/B · PANASONIC - MATSUSHITA TX 25 CK 1 F · PANASONIC - MATSUSHITA TX 25 CK 1 F/M · PANASONIC - MATSUSHITA TX 25 CK 1 P · PANASONIC - MATSUSHITA TX 25 LK 1 C · PANASONIC - MATSUSHITA TX 25 LK 1 F · PANASONIC - MATSUSHITA TX 28 CK 1 C · PANASONIC - MATSUSHITA TX 28 CK 1 C/B · PANASONIC - MATSUSHITA TX 28 CK 1 F · PANASONIC - MATSUSHITA TX 28 CK 1 F/B · PANASONIC - MATSUSHITA TX 28 CK 1 P · PANASONIC - MATSUSHITA TX 28 LB 1 C · PANASONIC - MATSUSHITA TX 28 LB 1 F/S · PANASONIC - MATSUSHITA TX 28 LD 8 C · PANASONIC - MATSUSHITA TX 28 LK 1 C · PANASONIC - MATSUSHITA TX 28 LK 1 F · PANASONIC - MATSUSHITA TX 28 LK 1 F 6 · PANASONIC - MATSUSHITA TX 28 LK 1 F/S · PANASONIC - MATSUSHITA TX 28 SK 1 C
