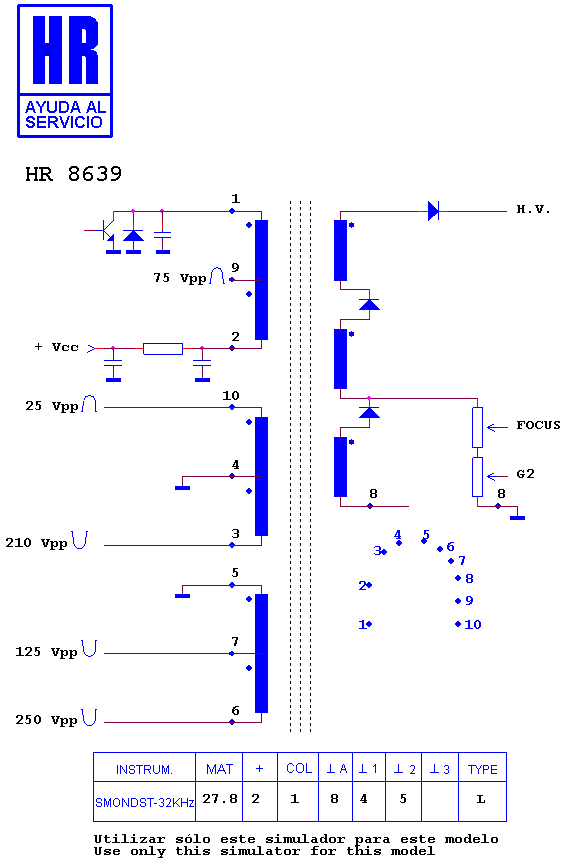

HR 8639

type SM · family 1VP2 · 27.8 kV maximum anode voltage · L° deflection · 410 g

Manufacturer equivalents (1)

ZTFM 05008 A

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

PANASONIC - MATSUSHITA TX 25 LD 20 C · PANASONIC - MATSUSHITA TX 28 LD 20 F · PANASONIC - MATSUSHITA TX 28 LK 10 C · PANASONIC - MATSUSHITA TX 28 SL 20 C
