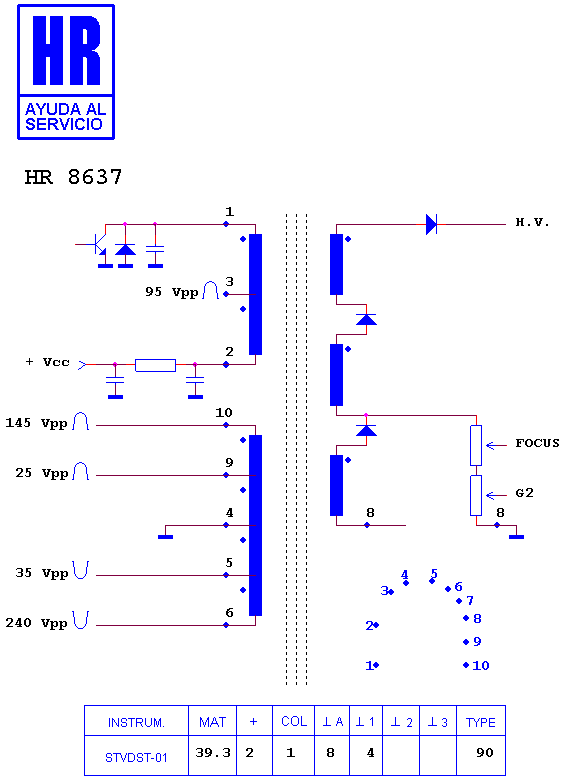

HR 8637

type ST · family 1YP · 39.3 kV maximum anode voltage · 90° deflection · 410 g

Manufacturer equivalents (13)

104511.22 · 104511.60 · 1302.0034 · 1302.0034 A · 1302.0034 C · 23236513 · 23236648 · 40327-22 · FAT30767 · TFB 4137 · TFB 4137 AD · TFB 4137 AR · TFB 4137 BE

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (11)

TOSHIBA 2866 DD · TOSHIBA 2866 DF · TOSHIBA 2876 DD · TOSHIBA 2876 DD/DF · TOSHIBA 2876 DF · TOSHIBA 2876 DG · TOSHIBA 2878 DG · TOSHIBA 3378 DG · TOSHIBA 7086 DD · TOSHIBA CHASIS C 6 SS · TOSHIBA CHASIS C 7 SS

Search this part in the full database
