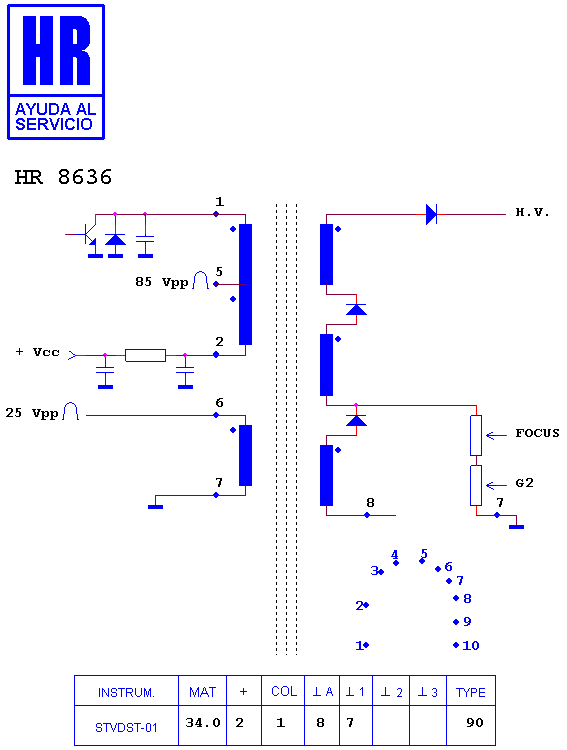

HR 8636

type ST · family 1YP · 34 kV maximum anode voltage · 90° deflection · 410 g

Manufacturer equivalents (1)

ZTFH 44010 A

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (16)

PANASONIC - MATSUSHITA CHASIS EURO 2 · PANASONIC - MATSUSHITA CHASIS EURO 2 M · PANASONIC - MATSUSHITA TX 21 AB 3 C · PANASONIC - MATSUSHITA TX 21 AD 2 · PANASONIC - MATSUSHITA TX 21 AD 2 DM · PANASONIC - MATSUSHITA TX 21 AD 2 DP · PANASONIC - MATSUSHITA TX 21 AD 2 M · PANASONIC - MATSUSHITA TX 21 AD 3 C · PANASONIC - MATSUSHITA TX 21 AD 3 F · PANASONIC - MATSUSHITA TX 21 MD 3 · PANASONIC - MATSUSHITA TX 21 MD 3 C · PANASONIC - MATSUSHITA TX 21 MD 3 E · PANASONIC - MATSUSHITA TX 21 MD 3 F · PANASONIC - MATSUSHITA TX 21 MD 3 P · PANASONIC - MATSUSHITA TX 25 MD 3 C · PANASONIC - MATSUSHITA TX 28 MD 3 C

Search this part in the full database
