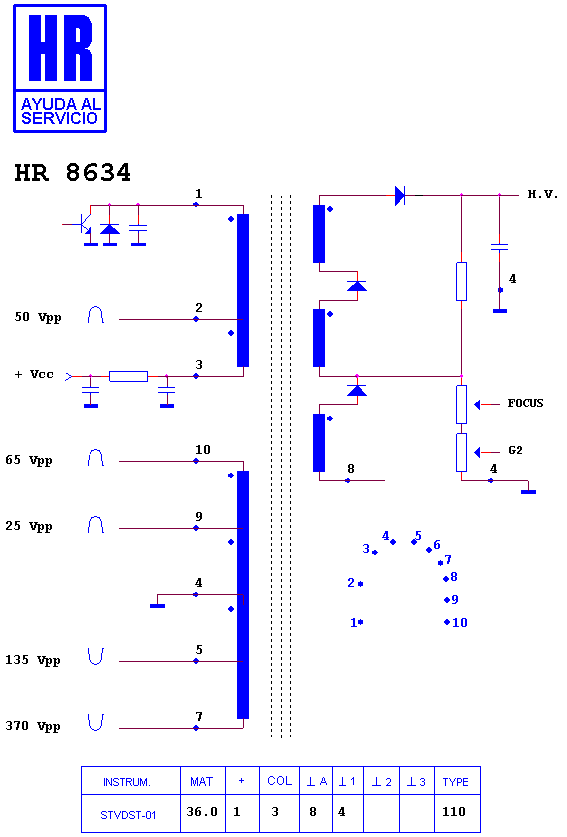

HR 8634

type ST · family 1WP1 · 36 kV maximum anode voltage · 110° deflection · 461 g

Manufacturer equivalents (1)

6174 Z 6238 N

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (33)

LG - GOLDSTAR 28 A 64 T · LG - GOLDSTAR CF 25 A 52 L · LG - GOLDSTAR CF 25 A 56 C · LG - GOLDSTAR CF 25 A 56 F · LG - GOLDSTAR CF 25 A 56 T · LG - GOLDSTAR CF 25 A 64 D · LG - GOLDSTAR CF 25 A 64 DF · LG - GOLDSTAR CF 25 A 64 DL · LG - GOLDSTAR CF 25 A 64 DT · LG - GOLDSTAR CF 25 A 64 L · LG - GOLDSTAR CF 25 A 64 T · LG - GOLDSTAR CF 25 A 67 T · LG - GOLDSTAR CF 25 C 60 XM · LG - GOLDSTAR CF 28 A 52 L · LG - GOLDSTAR CF 28 A 52 T · LG - GOLDSTAR CF 28 A 56 F · LG - GOLDSTAR CF 28 A 56 T · LG - GOLDSTAR CF 28 A 60 DF · LG - GOLDSTAR CF 28 A 60 DL · LG - GOLDSTAR CF 28 A 60 DT · LG - GOLDSTAR CF 28 A 64 DF · LG - GOLDSTAR CF 28 A 64 DL · LG - GOLDSTAR CF 28 A 64 DT · LG - GOLDSTAR CF 28 A 64 T · LG - GOLDSTAR CHASIS MC 73 A · LG - GOLDSTAR CHASIS PC 73 A · LG - GOLDSTAR CHASIS PC 73 A 25-29" · LG - GOLDSTAR DTV 4500 · LG - GOLDSTAR RN 25 A 64 T · LG - GOLDSTAR RN 28 A 60 T · LG - GOLDSTAR VF 28 A 52 L · NAD CHASIS PC 73 A · NAD TV 280
