HR 8630

type ST · family 1VP · 35.1 kV maximum anode voltage · 110° deflection · 410 g

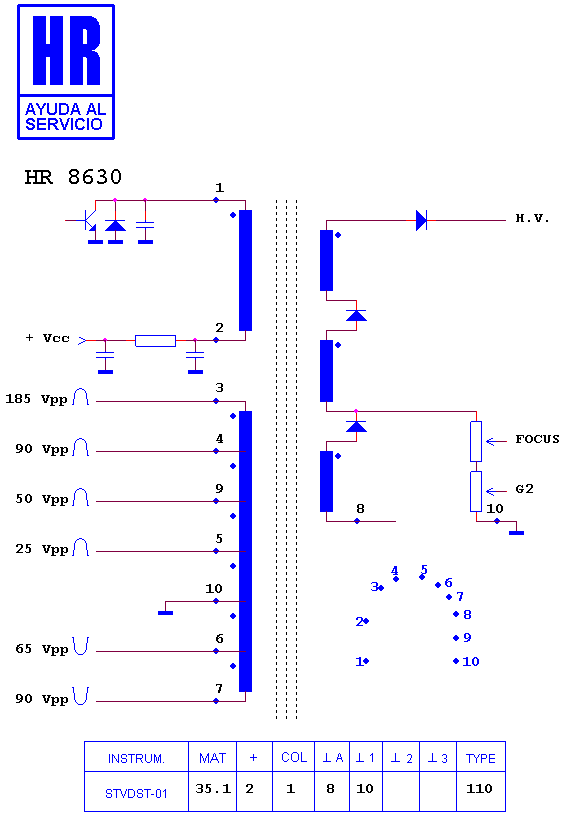

Schematic diagram for HR 8630
schematic (recovered)

Manufacturer equivalents (6)

138 21161 · 21161 · 21162 · 3128 138 21161 · DV2076/21161 · OV 2076-21161

Fitted to (9)

PHILIPS 21 PT 5305/00 · PHILIPS 21 PT 5505/00 · PHILIPS 28 PT 5105/00 · PHILIPS 29 PT 5305 · PHILIPS 29 PT 5305/00 · PHILIPS 29 PT 5305/01 · PHILIPS 29 PT 5305/58 · PHILIPS CHASIS L 9.1 E AA · PHILIPS CHASIS L 9.1 E AB
