HR 8623

type ST · family 1AP1 · 24.9 kV maximum anode voltage · 110° deflection · 390 g

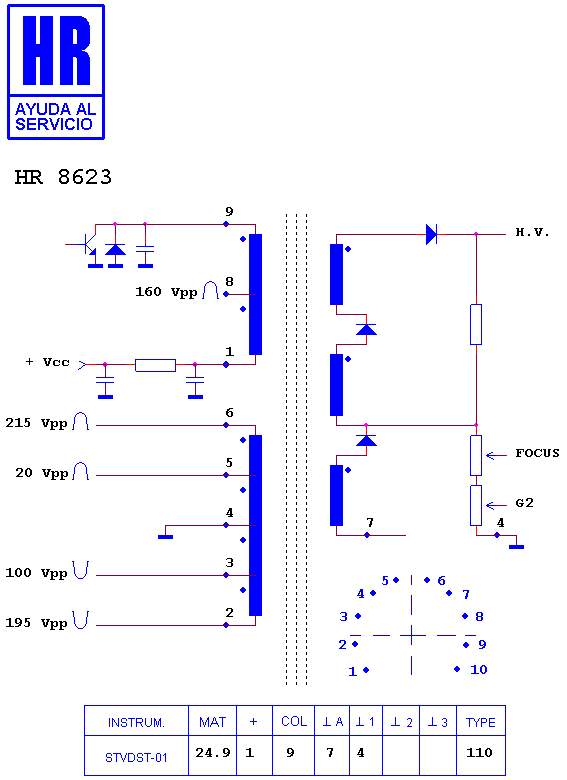

Schematic diagram for HR 8623
schematic (recovered)

Manufacturer equivalents (8)

016650401 · 1352.3047 · 1352.3047 B · 1352.3047A · 29201.665.04 · 29201.665.0401 · 292216650401 · HR 8623

Fitted to (1)

GRUNDIG CHASIS CUC 2131
