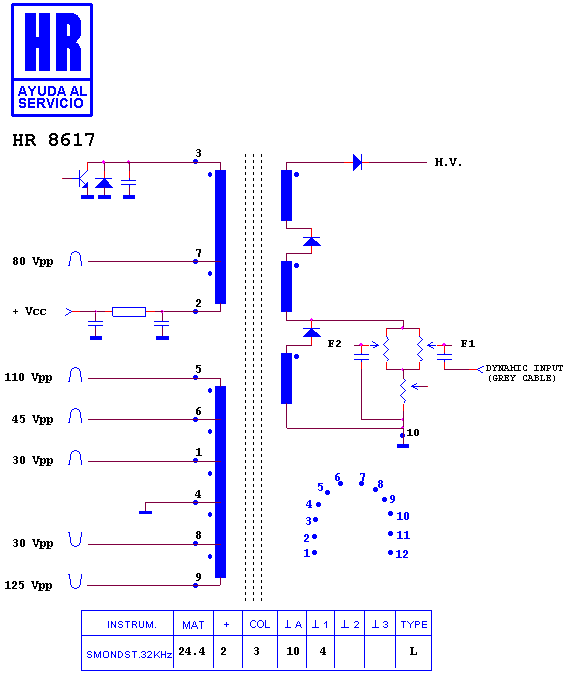

HR 8617

type SM · family 1YD · 24.4 kV maximum anode voltage · L° deflection · 408 g

Manufacturer equivalents (4)

AT 2091-20531 · CTRNF2045BMVO · F 2045 BM · RTRNF2045BMZZ

Notes

COR-027 THE GREY CABLE FROM THE HR(DIN.FOCUS)MUST BE SOLDED TO PCB HOLE WHICH CORRESPONDS TO THE DIN.FOC.FROM THE ORGIN.

Fitted to (9)

SHARP 70 DW 18 SN · SHARP 76 DW 18 H · SHARP 76 DW 181 T · SHARP 76 EF 19 H · SHARP 76 EF 20 H · SHARP 81 DW 15 S · SHARP 81 DW 15 SN · SHARP 81 DW 18 FP · SHARP CHASIS CW 100
