HR 8610

type ST · family 1XP1 · 20.7 kV maximum anode voltage · 90° deflection · 296 g

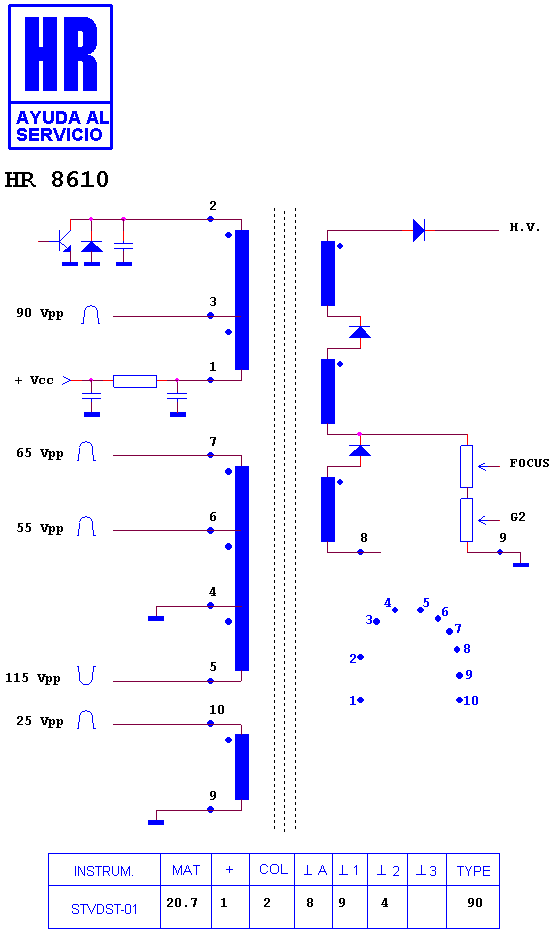

Schematic diagram for HR 8610
schematic (recovered)

Manufacturer equivalents (7)

11030239042000 · 11030939042000 · 1142.5118 · 1142.5118 B · 1142.51182 · 1142.5118A · HR 8610

Search this part in the full database
