HR 8597

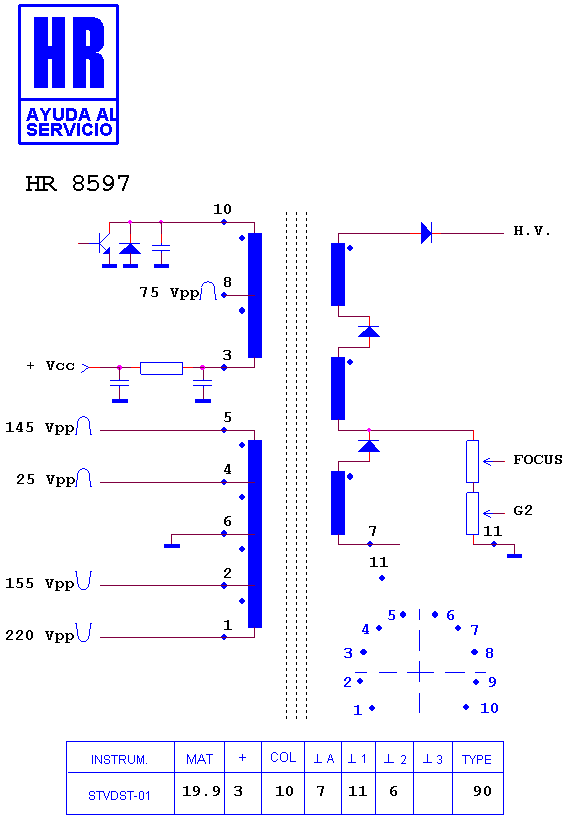

Schematic diagram for HR 8597
schematic

Manufacturer equivalents (13)

003071069 · 003141036 · 003441014 · 59-E0031AA · BSC 24-2105 A · BSC24-2105 · JF 0208-0238 · JF 0280-0242 · JF0208-0242 · RO 279 · RO471 · TR 279 · TR471

Fitted to (8)

TED 2098 · TED 2099 · TED G 202 · TED T 209 BM · TED T 777 · TED TSS 1 · TEDELEX 2098 · TEDELEX 2098/99
