HR 8590

type ST · family 1YS · 26.7 kV maximum anode voltage · 90° deflection · 382 g

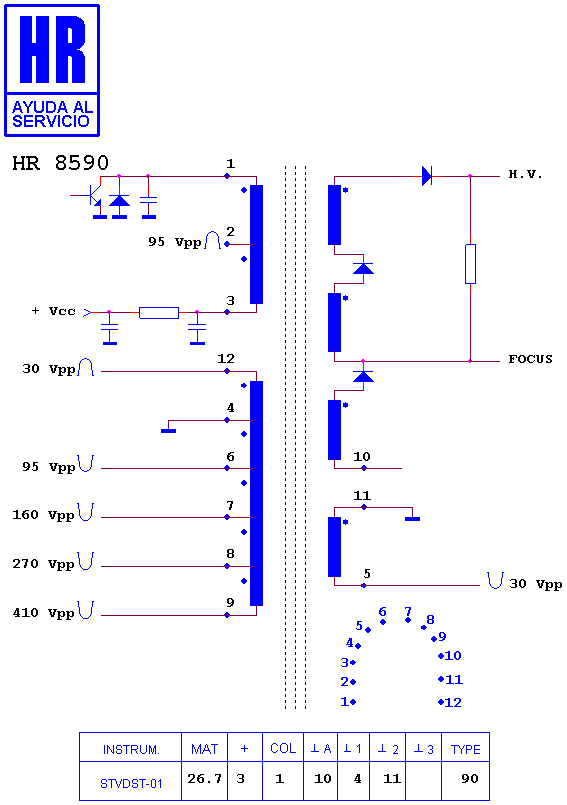

Schematic diagram for HR 8590
schematic (recovered)

Manufacturer equivalents (2)

3122 268 31491 · AT 2092-31491

Fitted to (1)

UNIC TVC MONITOR
