HR 8582

24.8 kV maximum anode voltage · 90° deflection · 4 windings · 410 g

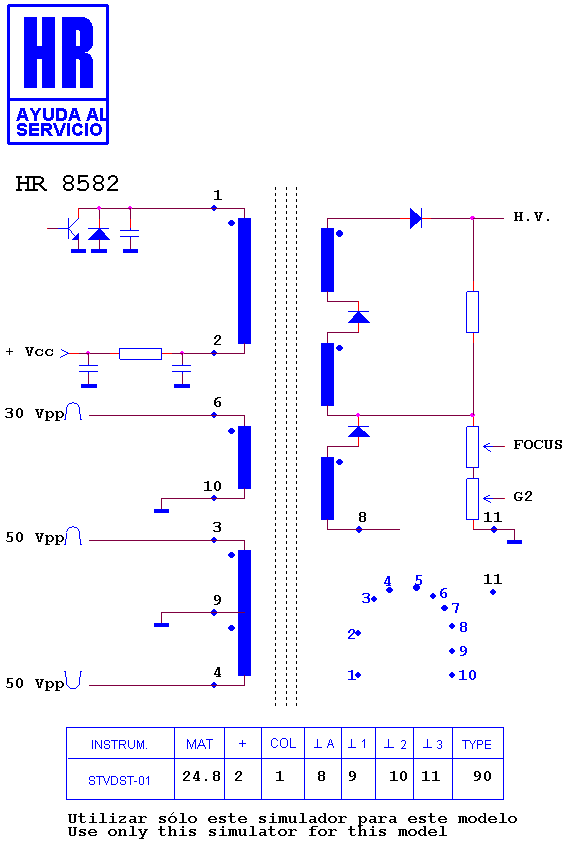

Schematic diagram for HR 8582 — schematic

Schematic diagram for HR 8582 — schematic (archived)

Manufacturer equivalents (1)

HR8582

Fitted to (2)

KROMA BR 5309 · KROMA MONITOR

Search this part in the full database
