HR 8570

type ST · family 1XP1 · 22.1 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

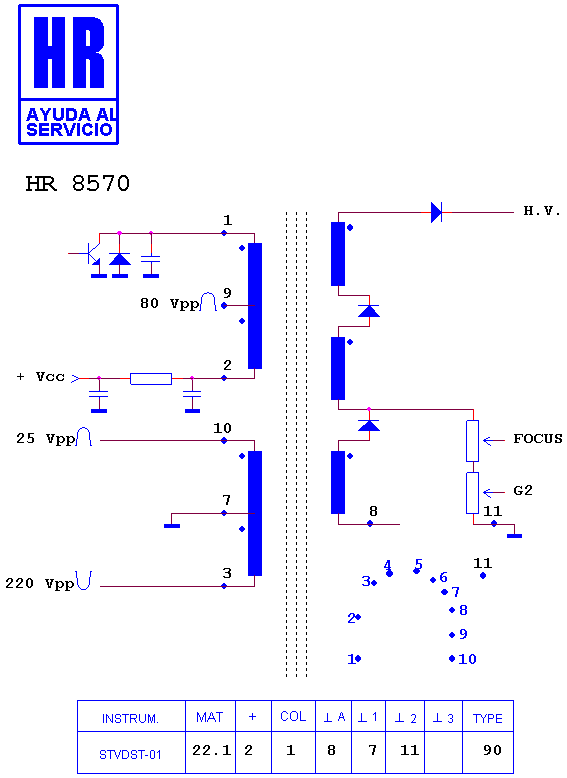

Schematic diagram for HR 8570
schematic

Manufacturer equivalents (4)

1142.5008 · F 2019 BM · HR 8570 · RTRNF2019BMZZ

Fitted to (3)

SHARP CHASIS DECO 4 · SHARP CHASIS DECO 4 STEREO · SHARP CHASIS DECO IV

Search this part in the full database
