HR 8563

type ST · family 1VP · 32.2 kV maximum anode voltage · 90° deflection · 4 windings · 410 g

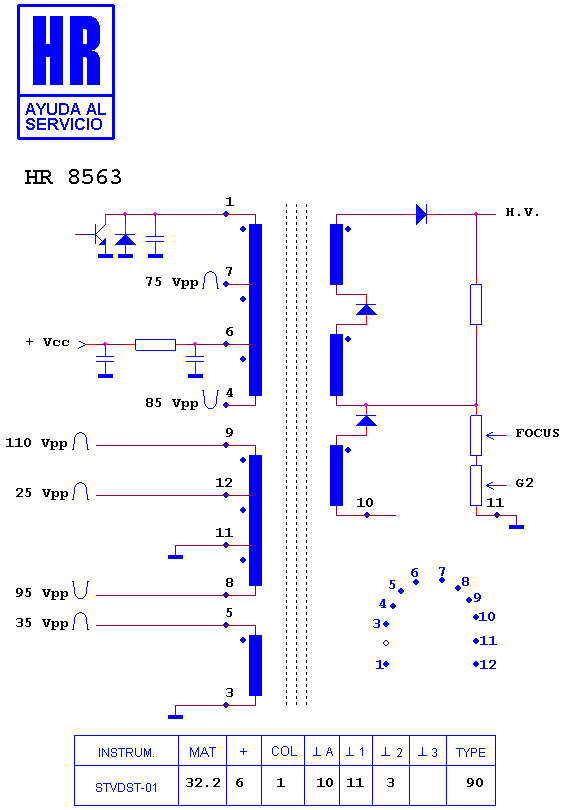

Schematic diagram for HR 8563
schematic

Manufacturer equivalents (11)

02365 · 1372.0003 · 1372.0003A · 1372.0003F · 1372.7001 · 2422 531 02365 · 531 02365 · 820400070371 · FAT30709 · HR 8563 · KN35024N

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

PHILIPS 28 PW 9615/12 · PHILIPS 32 PW 9615/12 · PHILIPS 32 PW 9615/58 · PHILIPS CHASIS MID 2
