HR 8562

type ST · family 1YP · 30.3 kV maximum anode voltage · 110° deflection · 410 g

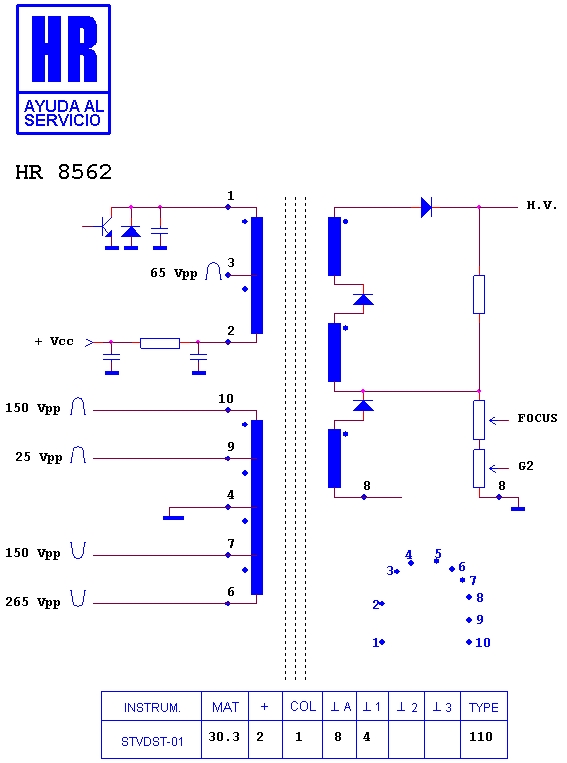

Schematic diagram for HR 8562
schematic (recovered)

Manufacturer equivalents (15)

472-23116-00U · 472-25103-00 · 5100-051409-28 · 5101-051409-28 · BSC 26-3902 · BSC25-3701 · BSC26-1001 · BSC26N1001 · BSC29-22E · BSC39-3902 · CH 0007079-2001 B · FAT30126 · JF0101-2708 · KFS 60490 · KFS60490A

Fitted to (8)

AIKO 8201 · DAEWOO DTQ 2891 F · MTC MTV 2800 S · PALSONIC 6718 · PALSONIC 6728 · PALSONIC C 728 · PREMIER PT 2801 · TELEOPTA XT 7103

Search this part in the full database
