HR 8522

type ST · family 1VP · 32.7 kV maximum anode voltage · 110° deflection · 3 windings · 374 g

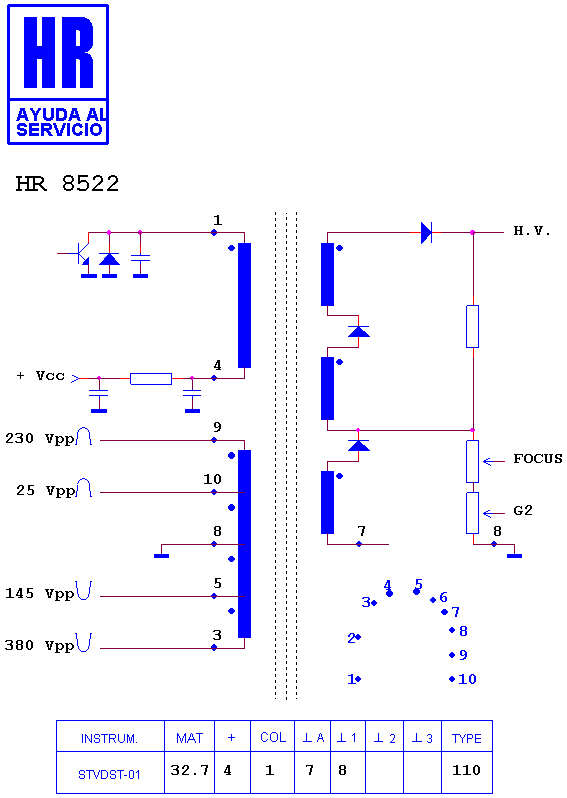

Schematic diagram for HR 8522
schematic

Manufacturer equivalents (8)

1362.5018 · 1362.5018 C · 1362.5018A · 1362.5018D · 1362.5064 · 50 H 0000233 · 50H0000025 · HR 8522

Fitted to (2)

DAEWOO TW 28 D 11 · DAEWOO WP 895 F
