HR 8517

type ST · family 1YP · 29.7 kV maximum anode voltage · 110° deflection · 410 g

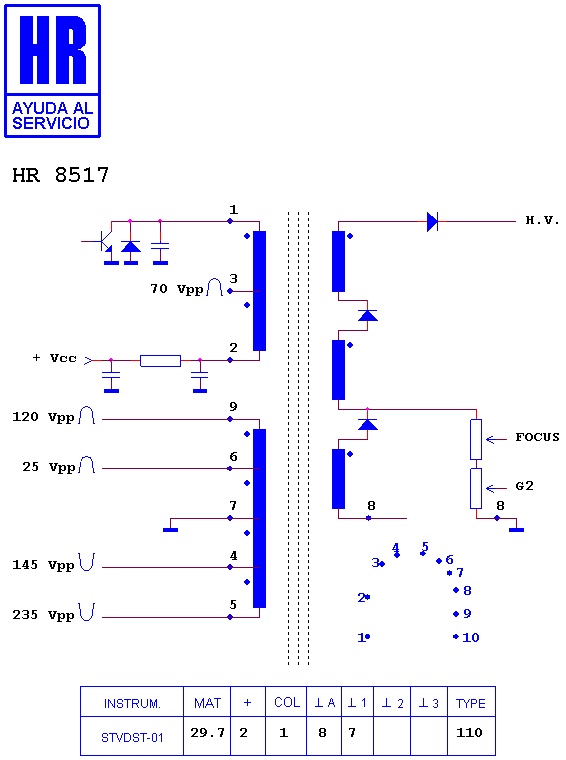

Schematic diagram for HR 8517
schematic (recovered)

Manufacturer equivalents (2)

001-214192-10 · JF 0501-1928

Fitted to (2)

ROYAL - ROYAL LUX ROYAL 1499 · ROYAL - ROYAL LUX RY 1499
