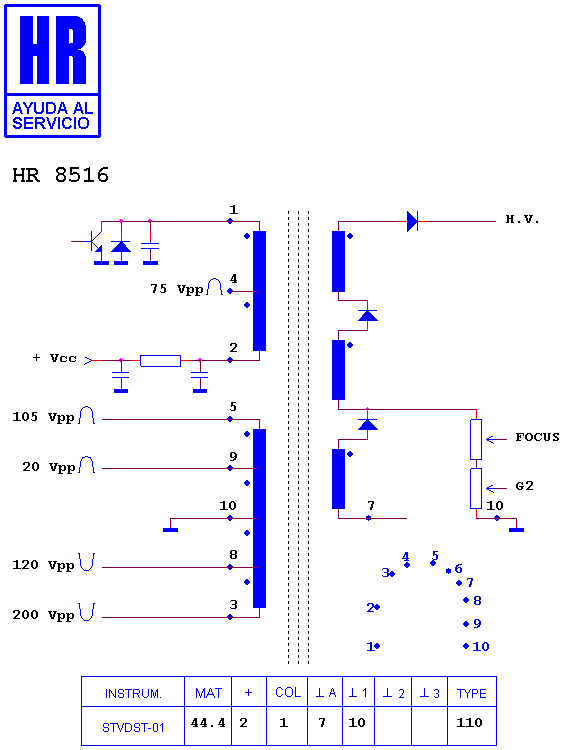

HR 8516

type ST · family 1YP · 44.4 kV maximum anode voltage · 110° deflection · 410 g

Manufacturer equivalents (4)

1AV4L40B06600 · 645 021 2574 · L 40 B 00660 · L 40 B 06600

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

SANYO DS 25630 A · SANYO DS 25650
