HR 8513

type ST · family 1XP1 · 24.1 kV maximum anode voltage · 90° deflection · 296 g

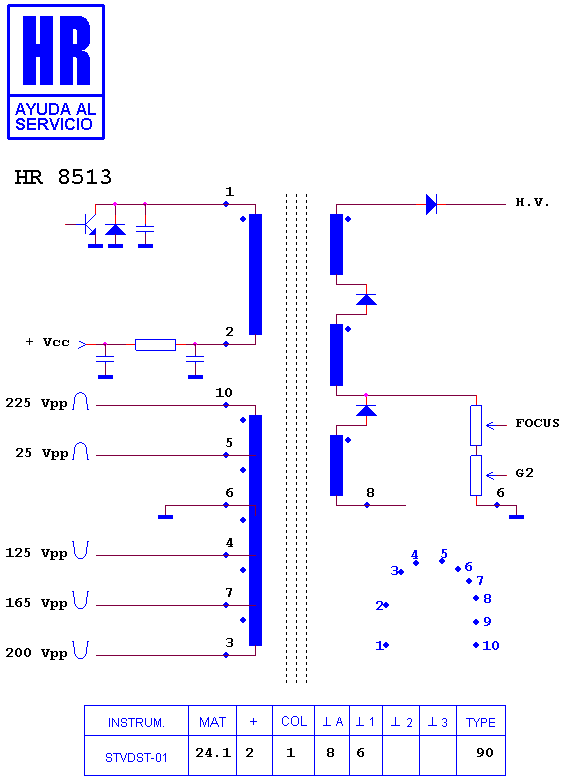

Schematic diagram for HR 8513
schematic (recovered)

Manufacturer equivalents (2)

KFT 2 AB 118 F · KFT 2 AB 119 F

Fitted to (1)

PANASONIC - MATSUSHITA CTZ 1416 W
