HR 8511

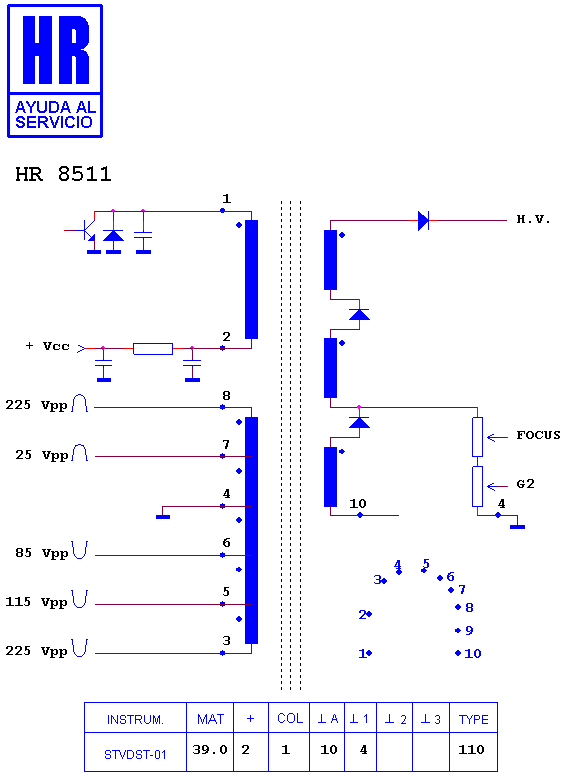

Schematic diagram for HR 8511 — schematic (recovered)

Manufacturer equivalents (5)

FMS27A001 · FSM 27 A 001 · QQH 0028-001 · TLF2AA005 · TLF2AA05

Search this part in the full database

HR Diemen is a trademark of Efiter S.L. This archive is not affiliated with, endorsed by, or connected to Efiter or HR Diemen.
