HR 8502

type ST · family 1XP1 · 90° deflection · 296 g

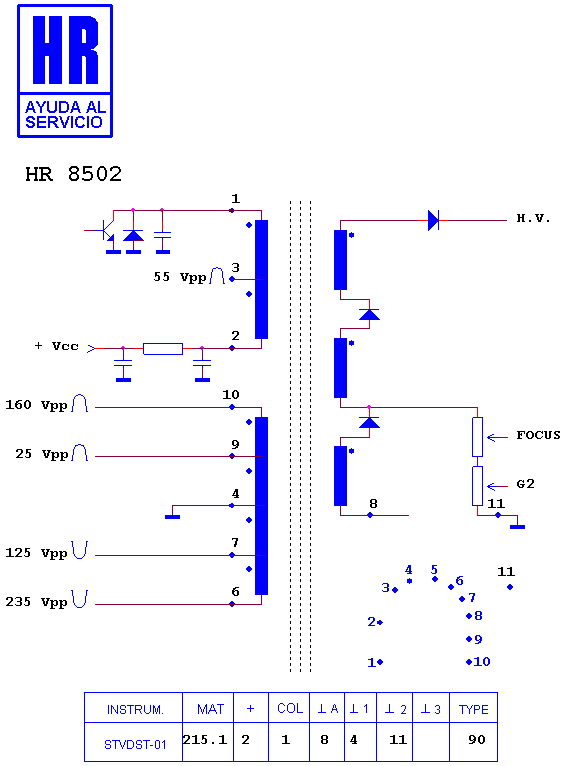

Schematic diagram for HR 8502
schematic (recovered)

Manufacturer equivalents (1)

TFB 4030 AD

Fitted to (5)

TOSHIBA 14 GH 042 · TOSHIBA 14 SH 04 M · TOSHIBA CF 1311 J · TOSHIBA CF 317 · TOSHIBA CP 1411 J

Search this part in the full database
