HR 8495

type ST · family 1XP1 · 22.1 kV maximum anode voltage · 90° deflection · 296 g

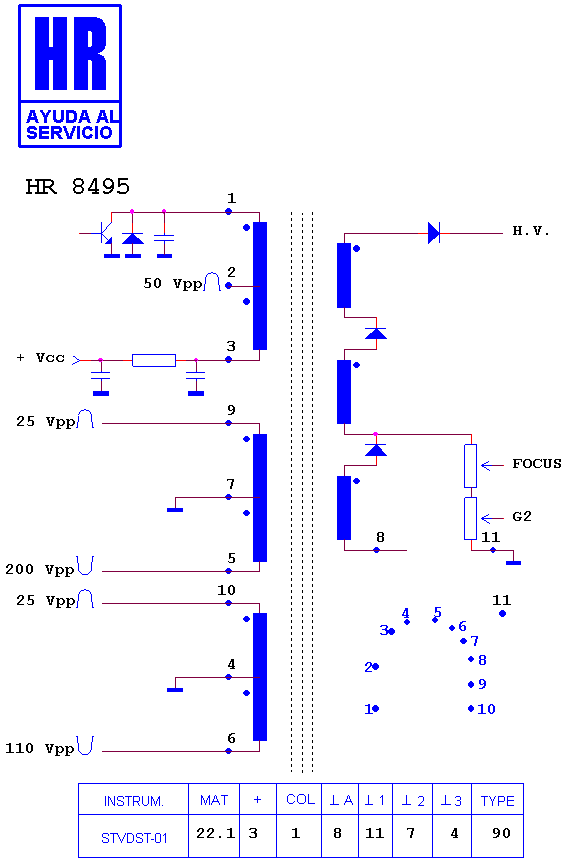

Schematic diagram for HR 8495 — schematic

Manufacturer equivalents (1)

154 177 F

Search this part in the full database
