HR 8492

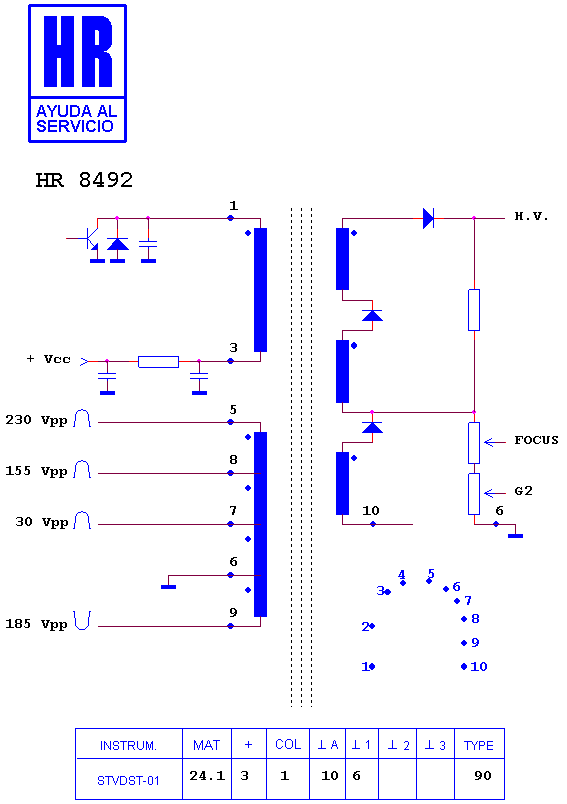

Schematic diagram for HR 8492
schematic (recovered)

Manufacturer equivalents (9)

AA 26-30005 E · AA26-30005W · FCK 21 B 003 · FCK 21 B 003 S · FCK21B003A · FTK 21 B 003 · FTK 21 B 003 A · FTK 21 B 003 AS · FTK 21 B 003 S

Fitted to (2)

SAMSUNG CT 566 BV · SAMSUNG CT 567 BW

Search this part in the full database
