HR 8475

17.1 kV maximum anode voltage · H° deflection · 3 windings · 346 g

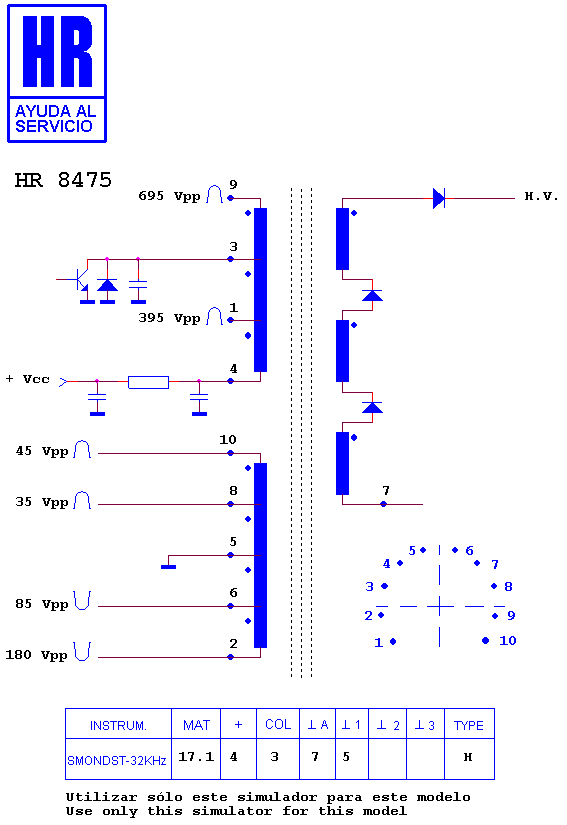

Schematic diagram for HR 8475 — schematic

Schematic diagram for HR 8475 — schematic (archived)

Manufacturer equivalents (1)

HR8475
