HR 8471

type SM · family 1VCS · 22.9 kV maximum anode voltage · L° deflection · 3 windings · 408 g

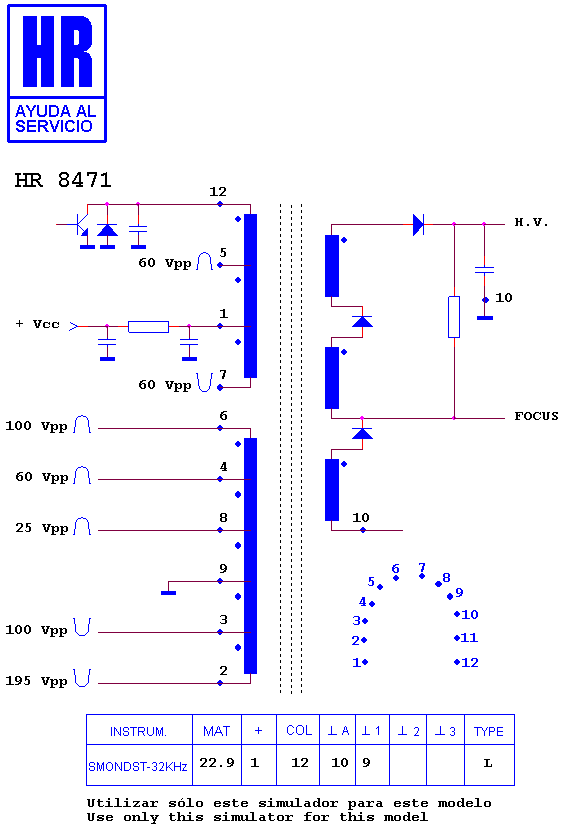

Schematic diagram for HR 8471
schematic

Manufacturer equivalents (14)

1372.9006 · 1372.9006A · 1372.9021 · 1372.9021 B · 1372.9021A · 276-2867 · 276-28670 · 276-28670.050 · 276-28670.051 · 28670.050 · 28670.051 · FAT30833 · HR 8471 · KN35374N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8421 · HR 8340
