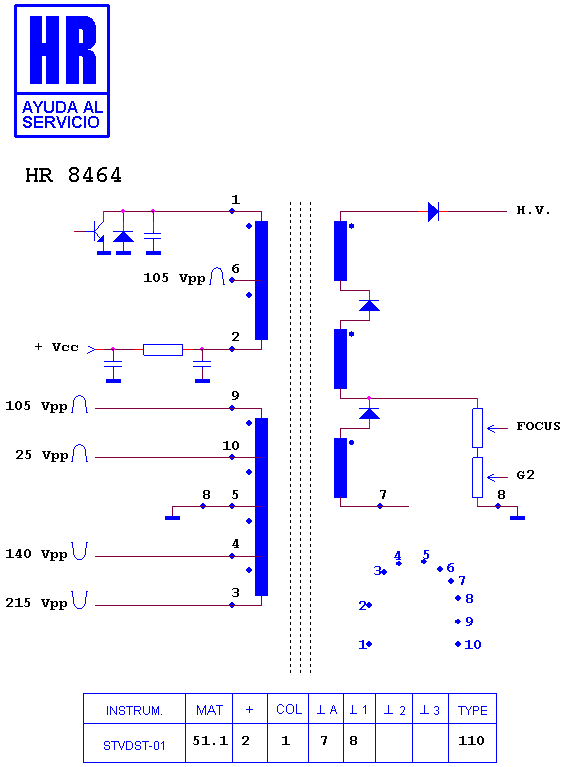

HR 8464

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 410 g

Manufacturer equivalents (7)

043219003 · 043219003 A · 043221003 · 0432210031 · 3219003 · 3221003 · 32210031

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (17)

EMERSON VT 1921 · EMERSON VT 1922 · ORION 520 VT · ORION 520 VT OSD · ORION 520 VTP · ORION 553 PAL · ORION CHASIS CODE G · ORION COLOR 5130 RC · ORION COLOR 520 · ORION COLOR 520 P · ORION COLOR 520 VT · ORION COLOR 520 VT P · ORION COMBI 5194 · ORION GIOIELLO 20" · ORION GIOIELLO 520 · ORION GIOIELLO 520 VT · ORION TV 520
