HR 8463

type ST · family 1YP · 42.9 kV maximum anode voltage · 110° deflection · 410 g

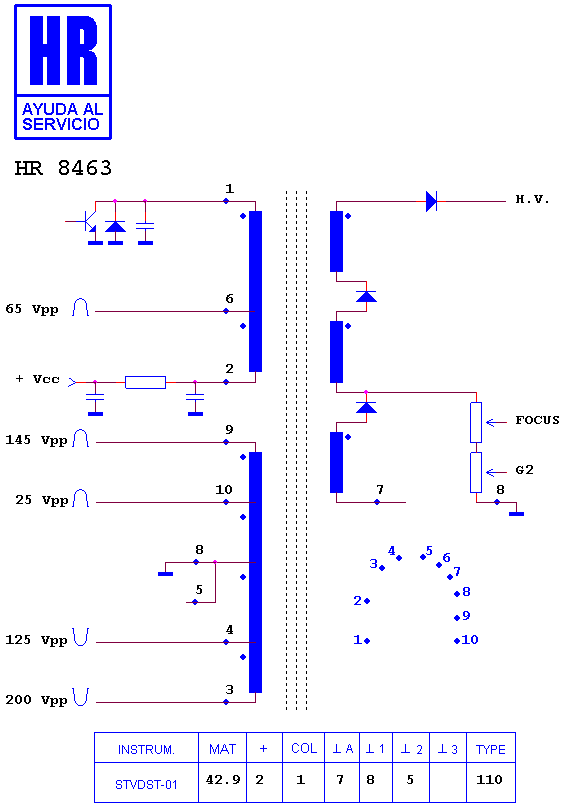

Schematic diagram for HR 8463
schematic (recovered)

Manufacturer equivalents (3)

043220030 · 0432200301 · 3220030
