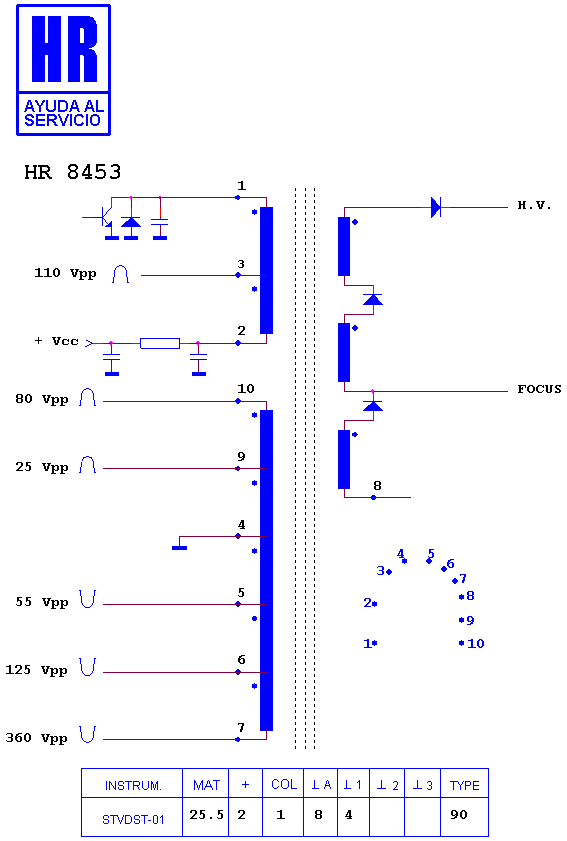

HR 8453

type ST · family 1YS · 25.5 kV maximum anode voltage · 90° deflection · 375 g

Manufacturer equivalents (2)

FM 0017 · FM 17

Notes

COD-019 THE ORIGINAL SILICONE BUSHING AND CONECTOR MUST BE ADAPTED TO THE HR TRANSFORMER FOCUS CABLE.

Fitted to (1)

SANYO CLP 370
