HR 8449

type SM · family 1VS · 23.5 kV maximum anode voltage · L° deflection · 4 windings · 352 g

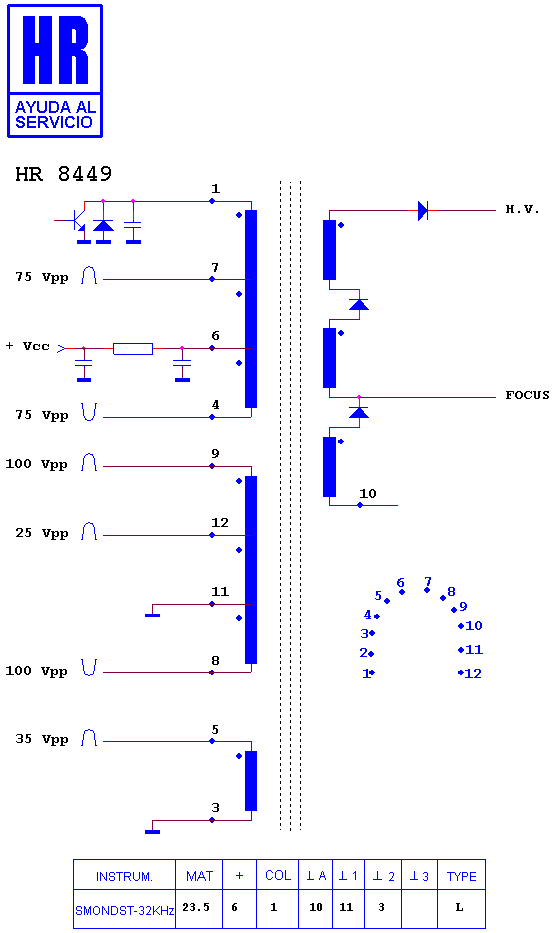

Schematic diagram for HR 8449
schematic

Manufacturer equivalents (12)

02397 · 1372.6006 · 1372.6006A · 1372.6006B · 1372.6006C · 1372.6008 · 1372.6008C · 234453102397 · 2422 531 02397 · 531 02397 · 820400073081 · HR 8449

Fitted to (7)

PHILIPS 28 PW 8806/12 R · PHILIPS 28 PW 9525/12 L · PHILIPS 28 PW 9525/19 · PHILIPS 32 PW 9525/12 · PHILIPS 32 PW 9546/12 · PHILIPS 32 PW 9615/12 · PHILIPS CHASIS MG 3.1 E-AA

Search this part in the full database
