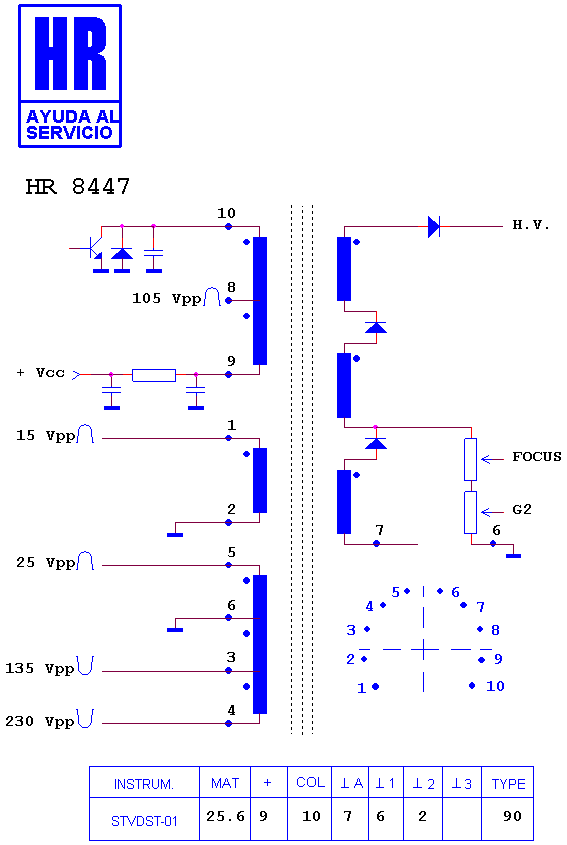

HR 8447

type ST · family 1XP1 · 25.6 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

Manufacturer equivalents (4)

101-221002-01 · 101-221002U01 · BSC 25-2059 S · KON 30000206

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
