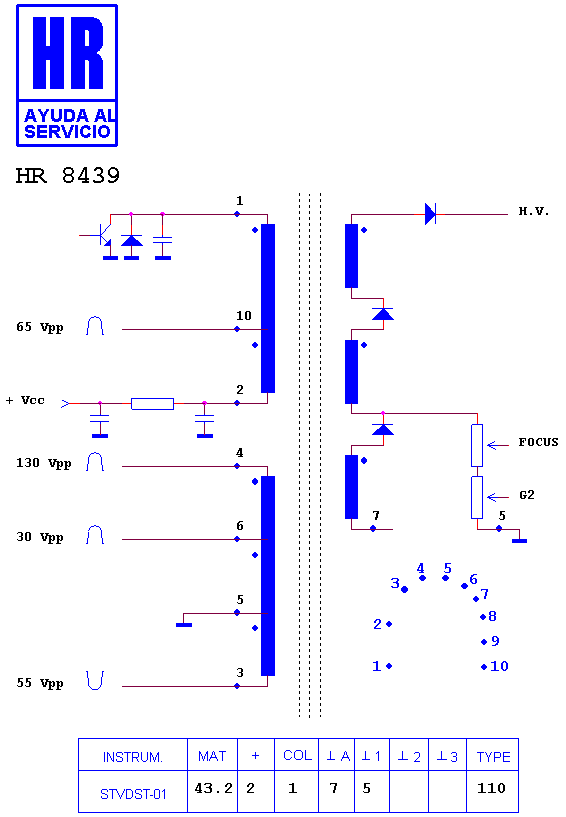

HR 8439

type ST · family 1YP · 43.2 kV maximum anode voltage · 110° deflection · 410 g

Manufacturer equivalents (3)

1LB4L40B05700 · BSC24-2631S · L 40 B 05700

Notes

COD-037 IN THIS HR TRANSFORMER THE SCREEN COMES OUT FROM THECABLE.

Fitted to (4)

SANYO C 2796 · SANYO C 29 F 5 AD · SANYO C 2996 · SANYO CTP 6796
