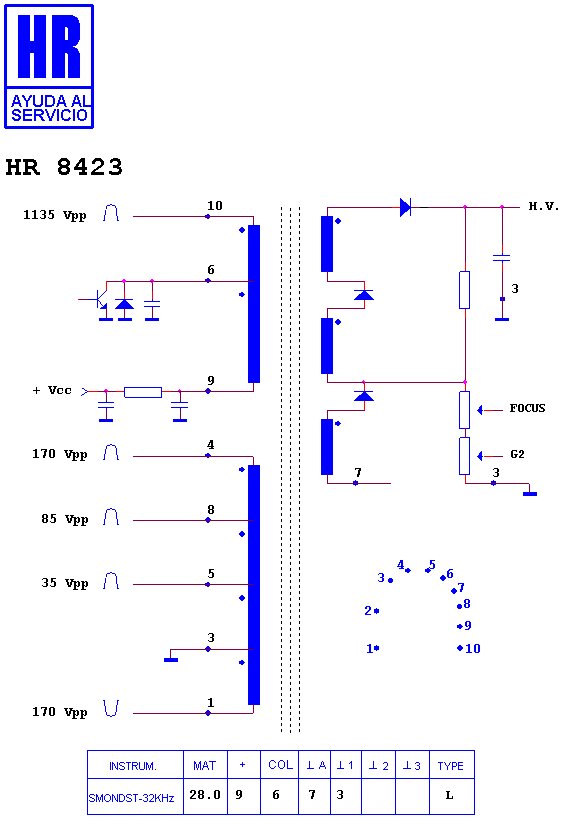

HR 8423

type SM · family 1WP1 · 28 kV maximum anode voltage · L° deflection · 461 g

Manufacturer equivalents (7)

1202.2011 · 1202.2011 A · 1501-0256-004 · 154 382 G · CF 0869 · F 38205-2 · TRSF 38205-2

Notes

COD-039 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS/SCREEN POTENTIOMETERS AND H.V. CAPACITOR CONNECTED INTERNALLY.

Fitted to (19)

CA&G CIS 1548/B-02 · CA&G MONITOR · CA&G MS 1593 G · CA&G VG 1493 · CA&G VG 1493 MRP II · CRYSTAL CM 1412 H · CRYSTAL MONITOR · DAYTEC DTC 1438 503 · DAYTEC MONITOR · HEIDENHAIN BC 120 B · HEIDENHAIN MONITOR · INTRA CM 1402 E · INTRA MONITOR · SAMSUNG MONITOR · SAMSUNG MS 1492 · SHIRO TLC 4103 · UNIBIT MONITOR · UNIBIT MS 1492 · UNIBIT MS 1493
