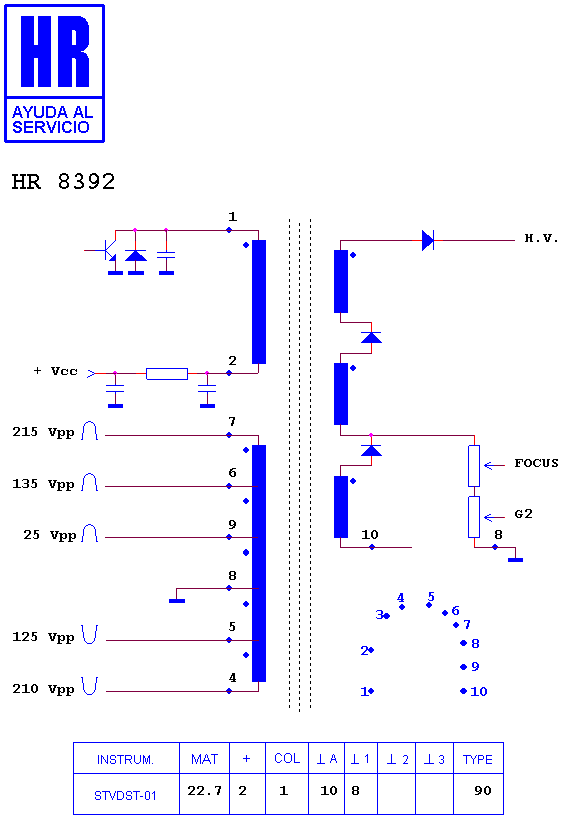

HR 8392

type ST · family 1YP · 22.7 kV maximum anode voltage · 90° deflection · 372 g

Manufacturer equivalents (3)

F 0149 PE · F 0149 PESA · RTRNF0149PEZZ

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

SHARP 21 M-J 10 · SHARP 21 MJ 10
