HR 8383

type SM · family 1ACS · 23.1 kV maximum anode voltage · L° deflection · 3 windings · 434 g

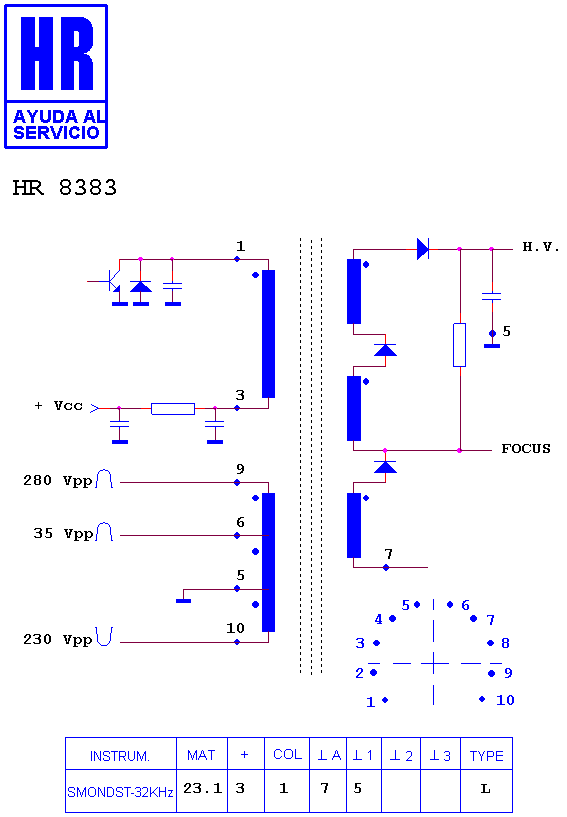

Schematic diagram for HR 8383
schematic
Schematic diagram for HR 8383
schematic (archived)

Manufacturer equivalents (3)

F1698CE · HR 8383 · RTRNF1698CEZZ
