HR 8364

type ST · family 1ZP · 342 g

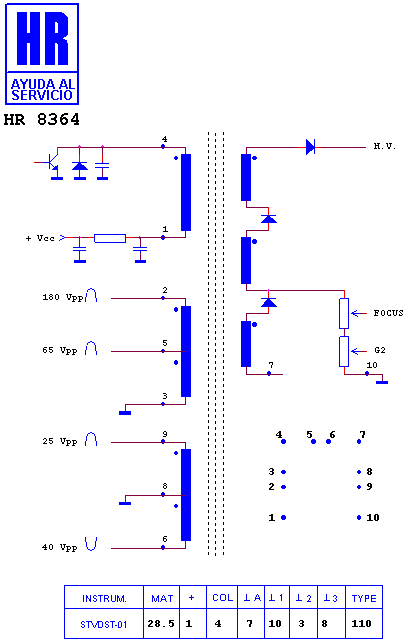

Schematic diagram for HR 8364
schematic (recovered)

Manufacturer equivalents (5)

6100179820 · FAT30009 · FD 0113 · FD 113 · ME/6368-00

Fitted to (3)

TELEFUNKEN 140 · TELEFUNKEN MP 140 · TELEFUNKEN PALCOLOR MP
