HR 8357

type ST · family 1XP1 · 290 g

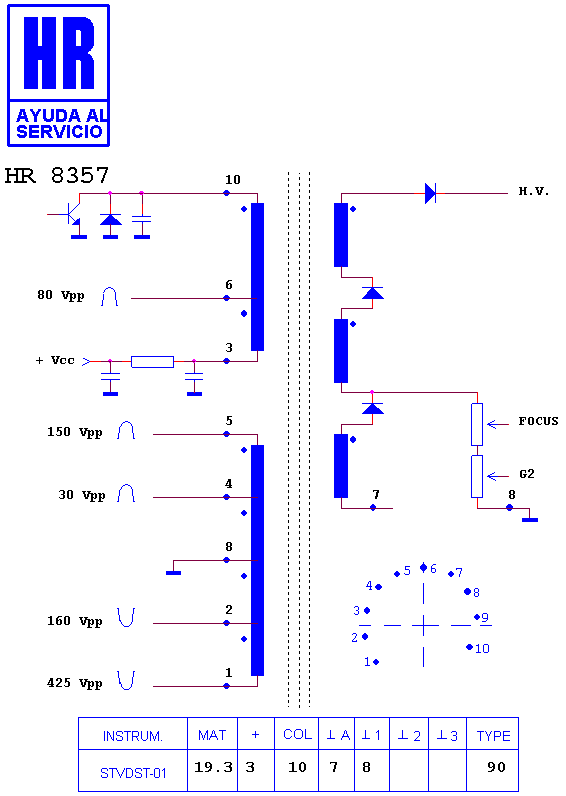

Schematic diagram for HR 8357
schematic (recovered)

Manufacturer equivalents (7)

003261002 · 047 105 177 · 047 105 178 · 47105177 · 47105178 · RO 260 · TR 260

Fitted to (2)

NEC 14 T 425 SB · NEC 14 T 525 SB
