HR 8352

type ST · family 1NP1 · 21 kV maximum anode voltage · 90° deflection · 280 g

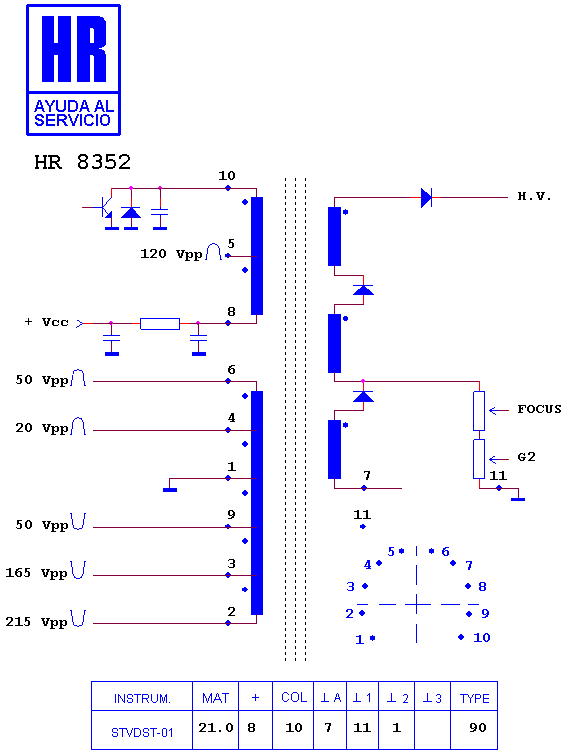

Schematic diagram for HR 8352
schematic (recovered)

Manufacturer equivalents (3)

003071006 · RO 267 · TR 267

Fitted to (4)

NEC 20 T 775 MH · NUMAN 37 MICROSLOT · SUNNY 37 RT 51 M · SUNNY RT 51 M
