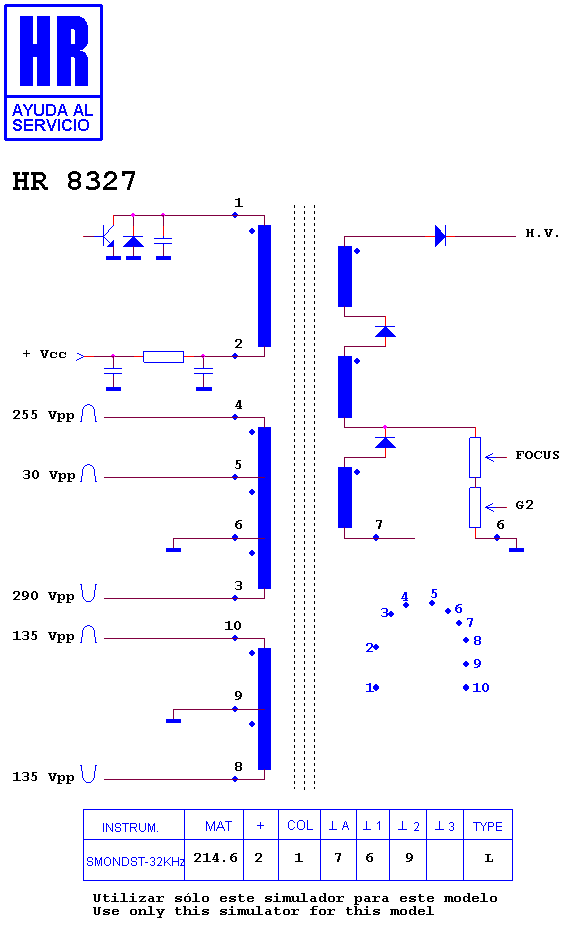

HR 8327

type SM · family 1YP · L° deflection · 372 g

Manufacturer equivalents (8)

AFS 366 · FSU 21 A 002 · FSV 21 A 002 · FSV 21 A 002 A · KFT 3 AB 326 F · ZTFK 33005 A · ZTFM 23002 A · ZTFN 23002 A

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (41)

PANASONIC - MATSUSHITA CHASIS Z 7 · PANASONIC - MATSUSHITA TC 1451 RS · PANASONIC - MATSUSHITA TC 21 JR 1 C · PANASONIC - MATSUSHITA TC 21 JR 1 F · PANASONIC - MATSUSHITA TC 21 JT 1 C · PANASONIC - MATSUSHITA TC 21 JT 1 F · PANASONIC - MATSUSHITA TC 21 K 1 R · PANASONIC - MATSUSHITA TC 21 S 3 M · PANASONIC - MATSUSHITA TC 21 S 3 MC · PANASONIC - MATSUSHITA TC 21 S 3 MC/Z · PANASONIC - MATSUSHITA TC 21 S 3 R · PANASONIC - MATSUSHITA TC 21 S 3 RC · PANASONIC - MATSUSHITA TC 21 S 3 RF · PANASONIC - MATSUSHITA TC 21 S 3 RL · PANASONIC - MATSUSHITA TC 21 S 3 RP · PANASONIC - MATSUSHITA TC 21 S 4 RC · PANASONIC - MATSUSHITA TC 21 S 4 RF · PANASONIC - MATSUSHITA TC 2153 M · PANASONIC - MATSUSHITA TC 2171 · PANASONIC - MATSUSHITA TX 21 JT 1 C · PANASONIC - MATSUSHITA TX 21 JT 1 F · PANASONIC - MATSUSHITA TX 21 JT 1 P · PANASONIC - MATSUSHITA TX 21 JT 3 P · PANASONIC - MATSUSHITA TX 21 JTP 3 · PANASONIC - MATSUSHITA TX 21 K 1 T · PANASONIC - MATSUSHITA TX 21 S 3 T · PANASONIC - MATSUSHITA TX 21 S 3 TC · PANASONIC - MATSUSHITA TX 21 S 3 TF · PANASONIC - MATSUSHITA TX 21 S 3 TL · PANASONIC - MATSUSHITA TX 21 S 3 TP · PANASONIC - MATSUSHITA TX 21 S 4 PF · PANASONIC - MATSUSHITA TX 21 S 4 RC · PANASONIC - MATSUSHITA TX 21 S 4 RF · PANASONIC - MATSUSHITA TX 21 S 4 TC · PANASONIC - MATSUSHITA TX 21 S 4 TC/V · PANASONIC - MATSUSHITA TX 21 S 4 TF · PANASONIC - MATSUSHITA TX 21 S 4 TL · PANASONIC - MATSUSHITA TX 21 S 4 TP · PANASONIC - MATSUSHITA TX 2153 TC · PANASONIC - MATSUSHITA TX 29 AD 10 F · PANASONIC - MATSUSHITA TX 29 AD 10 I
