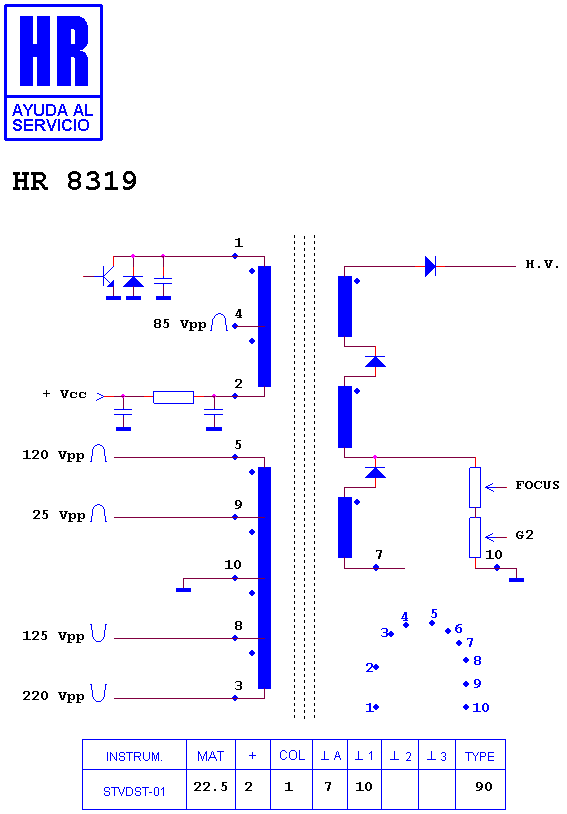

HR 8319

type ST · family 1XP1 · 22.5 kV maximum anode voltage · 90° deflection · 290 g

Manufacturer equivalents (14)

1AV4L40A00700 · 1AV4L40A00710 · 1AV4L40A00711 · 1LB4L40B08800 · 645 018 9579 · 645 032 8978 · BSC26-2699S · L 40 A 00700 · L 40 A 00710 · L 40 A 00711 · L40A00701 · L40B00270 · L40B00711 · L40B08800

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (9)

SANYO 13 B 00 · SANYO 29 PL · SANYO AVM 2963 V · SANYO C 29 LH 43 B · SANYO C 33 LJ 1 · SANYO C 33 LJ 13 · SANYO C 33 LJ 13 B 00 · SANYO C 3396 · SANYO DS 31590
