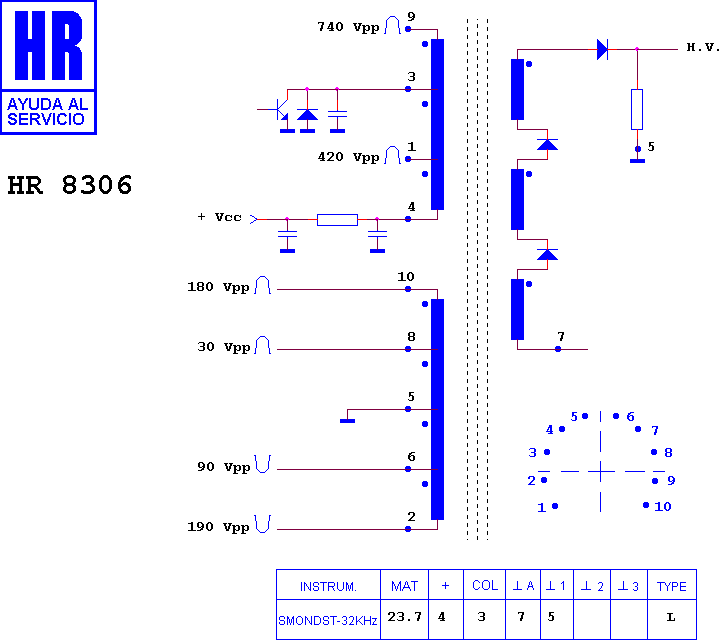

HR 8306

type SM · family 1AS1 · 23.7 kV maximum anode voltage · L° deflection · 3 windings · 310 g

Manufacturer equivalents (1)

HR 8306

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16524 — Focus control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
