HR 8293

type ST · family 1YS · 30.9 kV maximum anode voltage · 90° deflection · 3 windings · 382 g

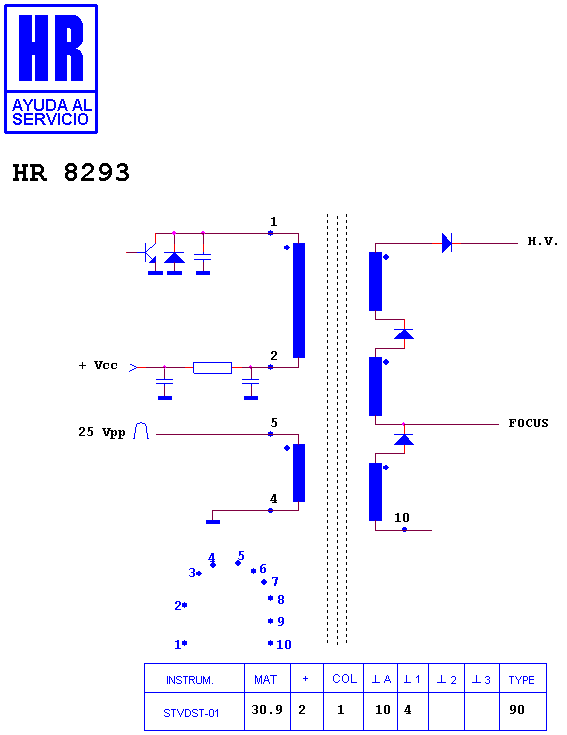

Schematic diagram for HR 8293
schematic

Manufacturer equivalents (9)

1-453-152-11 · 1-453-152-21 · 1-453-189-11 · 1-453-189-12 · 8-598-928-00 · 8-598-928-01 · 8-598-928-11 · 8-598-939-00 · NX 2631//A4S

Fitted to (5)

SONY KP 41 T 15 B · SONY KP 53 XBR 45 · SONY KPS 4113 · SONY MDKP 41 T · SONY MONITOR
