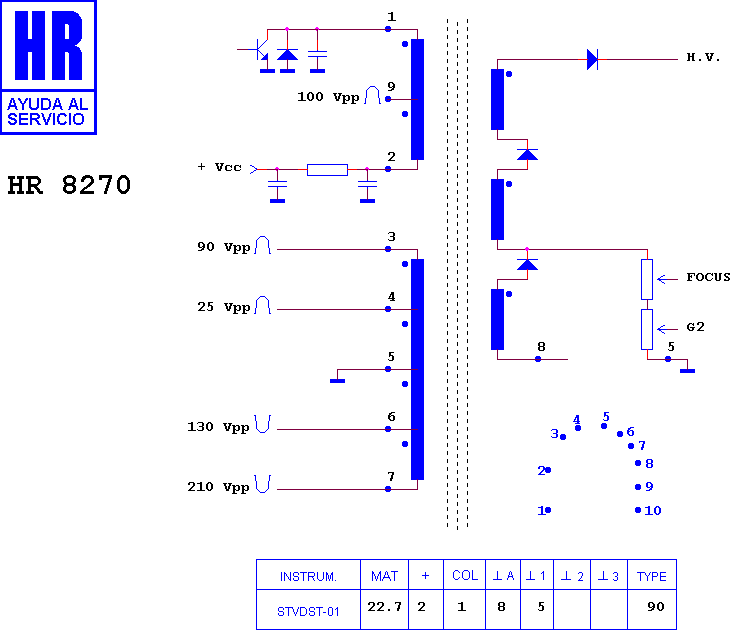

HR 8270

type ST · family 1YP · 22.7 kV maximum anode voltage · 90° deflection · 410 g

Manufacturer equivalents (3)

MSU-1FHC506 · TAT 2901 · TAT 2901 A

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

CCE HPS 2980 · CCE HPS 2981 · CCE HPS 2981 A · CCE HPS 2981 B
