HR 8265

type SM · family 1WD · 25.9 kV maximum anode voltage · L° deflection · 3 windings · 474 g

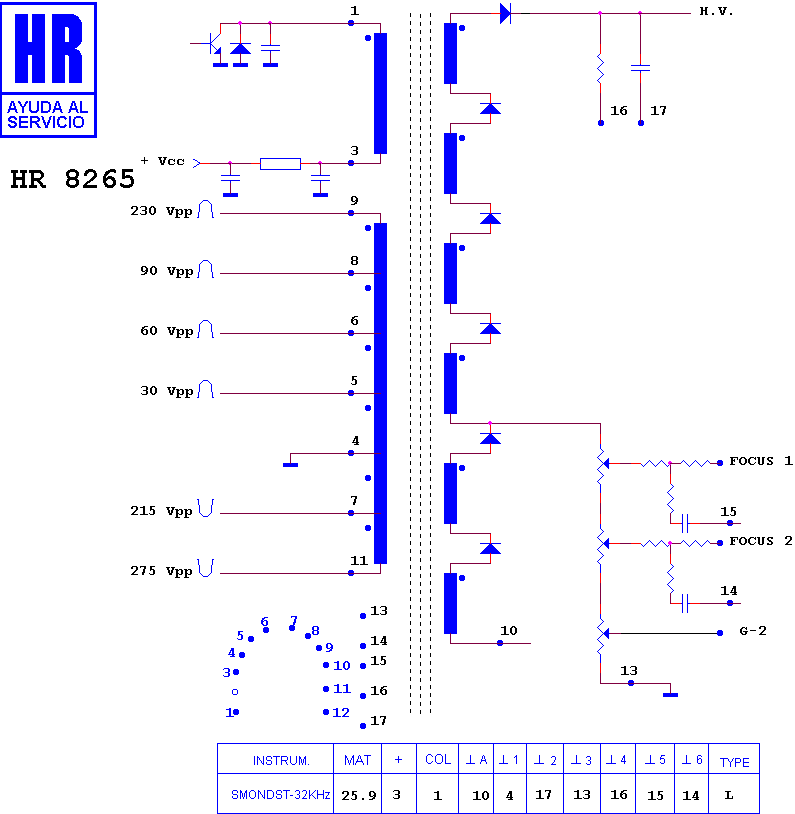

Schematic diagram for HR 8265
schematic

Manufacturer equivalents (3)

1302.0014 · JT 165 · JT148

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80218
